This detailed guide to Compression Adapters breaks down how they join tubing and small-diameter pipes for reliable plumbing. It is written for homeowners, licensed plumbers, and customers searching for replacement parts at Installation Parts Supply.

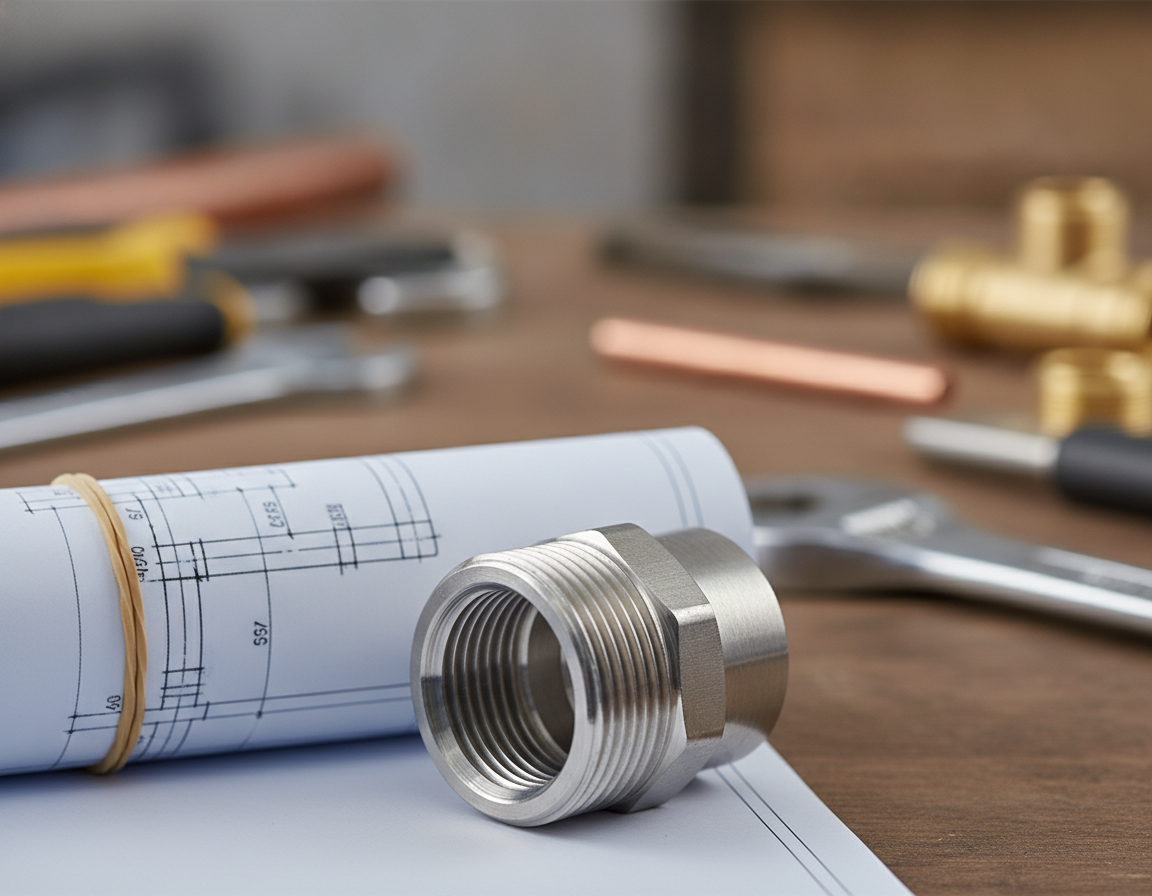

3/8 Male To 1/2 Female Adapter
Compression adapters function by compressing a ferrule against the pipe and fitting body, creating a pressure-resistant seal. These fittings appear in domestic, commercial, and industrial plumbing applications because they are simple.
The article sets out the main styles, sizes, metal options, and best-practice installation steps. It also includes problem diagnosis and installation scenarios. It emphasizes the importance of converting between 3/8 and 1/2 in. sizes and matching thread types such as NPT versus compression. Durability is stressed with brass, copper, or stainless steel options.
Always follow the manufacturer’s torque and turn specifications. For flexible tubing such as PEX, fit tubing inserts whenever the manufacturer or application recommends them. Do not mix ferrules, nuts, or fitting bodies from different brands, because mismatched parts can cause leaks, galling, or poor seating.
Important Takeaways
- Compression adapters form seals by tightening a ferrule onto the tubing.
- Installation Parts Supply provides common sizes and materials for most jobs.
- Select materials—brass, copper, or stainless—based on pressure and environment.
- When adapting 3/8 and 1/2 in. fittings, accurately match both size and thread type.
- Follow manufacturer torque guidance and use inserts when working with soft tubing.
Understanding Compression Adapter And Compression Fitting Basics
A compression adapter connects tubing by physically pressing a ferrule around the tube’s outside diameter. Unlike threaded fittings or push-fit fittings, these parts seal through ferrule compression rather than thread engagement or grab rings. Its seal is based on controlled metal deformation instead of thread sealant alone or internal retention clips.
The sections below summarize each component and how the pieces interact.
What Is A Compression Adapter And How It Differs From Other Fittings
A compression adapter is a type of compression fitting used to join pipes or tubes without soldering. It works by pressing a compression ferrule into a tapered compression fitting body as the compression nut is tightened. That approach is unlike threaded joints, which rely on matched threads and thread sealant. It is also not the same as push-fit fittings, which typically use rubber-like seals and retention clips for fast installation.
Basic Components: Nut, Ferrule Olive, And Fitting Body
The main pieces are the nut, the compression ferrule, and the fitting body. The nut applies the axial force needed for sealing. The ferrule, also called an olive, slightly deforms into the tubing surface. Inside the fitting body, a tapered bore aligns the ferrule into its sealing position.
Some designs use a rear ferrule to reduce stress on the seal and allow easier disassembly.
How Compression Fittings Make A Reliable Seal
Tightening the compression nut moves the ferrule into the fitting body’s taper. This radial compression squeezes the ferrule against the tubing and forms a line-contact seal. When the ferrule is properly seated, the joint helps stop leaks under normal pressure and temperature conditions.
Compression joints and compression fittings fit copper, brass, stainless steel, and many hard plastics. Installers should use manufacturer torque or turn guidance and confirm tubing compatibility before assembly.
| Part | Job | Key Benefit |
|---|---|---|
| Compression tightening nut | Provides axial force that seats the ferrule | More controlled assembly and service |
| Sealing ferrule | Compresses to bite into tubing | Strong metal-to-tube sealing under pressure |
| Compression fitting body | Receives ferrule in a tapered bore | Consistent alignment and a stable sealing surface |
| Rear ferrule when present | Helps control front ferrule sealing force | Improved reassembly with less tube damage |
Common Compression Adapter Sizes And Type Conversions
Switching between 1/2-inch and 3/8-inch tubing is a regular task. It is important to select the right reducer or adapter. This helps ensure a proper fit based on tubing OD, thread type, and gender. Choosing the correct part prevents leaks, extra fittings, and unnecessary labor.
Half inch to three eighths adaptor options
For supply-line jobs, parts such as the 1 2 To 3 8 Reducer and Half Inch To Three Eighths Adaptor are often required. They adapt a 1/2-inch feed to a 3/8-inch inlet. They may be found as one-piece reducers or two-piece compression adapter assemblies. This design maintains the tube seal. Before buying, always confirm whether the listed size refers to tubing OD or nominal pipe size.
Gender-specific adapters and reducers
Fitting gender is important when parts must mate correctly. A 1/2 Female To 3/8 Male Adapter is needed when the mating part has a male thread. For the reverse arrangement, installers often use a 3/8 Female To 1/2 Male Adapter. Installers will also find 1/2 Male To 3/8 Female Adapter and 1/2 Male To 3/8 Male Adapter variations for mixed systems.
Compression-to-compression and compression-to-NPT connections
Parts like 1/2 Compression To 3/8 Compression adapters maintain compression sealing on both ends. For threaded pipe networks, use a 1/2 Compression To 3/8 NPT or similar conversion fitting. For NPT connections, install the correct thread sealant or PTFE tape so the joint remains leak-resistant.
- Check part descriptions like 1 2 X 3 8 Compression Adapter or 3/8 X 1/2 Adapter for OD vs. nominal sizing.
- Confirm thread pitch and gender before cutting or buying replacement parts.
- Use trusted suppliers such as Mueller, Parker, or Watts to lower the risk of incompatible parts.
Materials And Compatibility For Reliable Connections
Material choice has a direct effect on how long the joint lasts. The fitting material should be matched according to tubing material, working pressure, and fluid type. That matching process encourages a connection that resists leaks, corrosion, and galling. For applications involving corrosive or high-purity systems, a 3 8 Male To 1 2 Female Stainless Steel option is often the most reliable.
For many applications, the main material choices are brass, copper, and stainless steel. Brass adapters generally work well in potable-water and general plumbing systems. Copper fittings are often used with copper tubing and soldered pipe runs. Stainless steel, on the other hand, offers corrosion resistance and durability in high-pressure or chemical environments.
Compression joints work most reliably with hard tubing like copper, stainless steel, nylon, and PEEK. Flexible tubing like PEX may also be used when a correctly sized tubing insert is installed. These inserts help prevent the tube from collapsing and ensure the ferrule bites properly.
PTFE tubing is chemically resistant and flexible but prone to PTFE cold flow under clamped loads. To mitigate this, use fittings with redundant seals, internal O-rings, or back-up devices. Regularly inspect connections when using PTFE in compressed joints.
Ferrule selection is central to a reliable compression seal. Metal ferrules in brass or stainless steel offer stability across a wide temperature range. One-piece ferrules may be adequate for softer tubing applications. Two-piece ferrule systems deliver more control and can reduce galling by separating the front-ferrule and rear-ferrule functions.
Asymmetrical ferrules, with a cone-shaped profile, ensure consistent seals in precision systems. They are designed to maintain their orientation. Symmetrical ferrules are simpler to assemble but may shift on hard plastics. Select ferrule geometry according to tubing hardness, pressure, temperature, and service requirements.
When selecting materials, consider the pressure, temperature, and media involved. For high-pressure, high-purity, or aggressive fluid service, choose stainless components with compatible ferrules. In routine domestic plumbing, brass compression adapters and copper compression fittings often combine affordability, availability, and performance.
Best Practices And Mistakes To Avoid During Installation
A reliable installation starts on clean, square-cut tubing and correctly matched components. Adhering to best practices reduces leaks and rework. A pre-assembly checklist can preserve time and materials.
Preparing Pipe Ends: Cutting, Deburring, And Cleaning
Use a quality cutter to make clean, square tubing cuts. Uneven cuts lead to leaks. A deburring tool cleans off burrs, sharp edges, and metal fragments.
Clean the ends with a lint-free cloth to clear oil, dirt, and metal dust. When using soft tubing such as PEX, fit a rigid insert that matches the tubing ID. The insert supports proper ferrule seating. Cutting, deburring, and cleaning are necessary steps for a dependable compression seal.
Proper Tightening: Turns Versus Torque And Avoiding Over-Tightening
After reaching finger-tight, follow the manufacturer’s recommended number of turns. Counting turns aligns compression with ferrule geometry better than torque readings. Thread pitch is mechanically linked to how much the ferrule compresses.
Do not over-tighten, because excessive force can flatten the ferrule, widen the contact area, and cause leaks. With stainless fittings, use moderate torque to reduce galling. Only use isopropyl alcohol as a temporary assembly aid when the manufacturer allows it.
When To Reassemble Or Replace Compression Ferrules
Most compression fittings can be taken apart a limited number of times. Ferrules often swage onto tubing after the first installation and may not reseal correctly if reused. Whenever a fitting is removed, examine the ferrule for deformation, scoring, or uneven seating.
Ferrules with poor seating should be replaced. If the fitting has been repeatedly assembled and removed, replace the ferrule and consider replacing the fitting body to restore a leak-tight joint.
Common mistakes include mixing components from different manufacturers, neglecting to use inserts on soft tubing, mismatching compression and NPT threads, and ignoring cutting, deburring, and cleaning. Addressing these issues reduces call-backs and enhances long-term performance.
Identifying The Right Adapter: Keyword-Focused Selection Guide
Finding the correct adapter depends on using precise search phrases and carefully reading part descriptions. Utilize specific phrases to identify the exact match, preventing the need for returns. Common search terms include 3/8Th To 1/2 Adapter and 1 2 X 3 8 Compression Adapter for swift results.
Key details to look for in descriptions are gender, diameter, and thread type. Listings like 1/2 Female To 3/8 Male Adapter or 1 2 To 3 8 Compression Adapter indicate which end accepts tubing or pipe. Always verify whether the diameter refers to tubing OD or nominal pipe size.
Search variants are helpful because suppliers often use different naming systems. Try 3/8 X 1/2 Adapter, 3 8 To 1 2 Compression Adapter, or 3/8Th To 1/2 Adapter to find compatible parts across various catalogs. Suppliers like Installation Parts Supply and Grainger often list the same item under multiple labels.
Adapter orientation should line up with the mating parts. A male-to-female fitting such as 1 2 Male To 3 8 Female Adapter may be the right choice for connecting a rigid pipe run to a hose or supply line. Female-to-female adapters, on the other hand, join two male-threaded components.
Be cautious of hybrid fittings that combine different thread types. A 1/2 Compression To 3/8 NPT or a 1/2 Female Compression To 1/2 Male NPT combines compression and pipe thread on opposite ends. Always use thread sealant as directed by the manufacturer.
Material selection is critical for corrosion resistance and compatibility. Brass and stainless steel are popular options. Ensure compatibility with copper, PEX, or PTFE tubing to avoid galvanic corrosion when mixing metals.
In cases of uncertainty, verify part numbers and examine photos. Using keywords such as 3/8Th To 1/2 Adapter, 1 2 X 3 8 Compression Adapter, 1/2 Female To 3/8 Male Adapter, 1 2 To 3 8 Compression Adapter, 3 8 To 1 2 Compression Adapter, and 3/8 X 1/2 Adapter can speed up the search for the right match.
Troubleshooting Leaks And Performance Issues
Leaks and pressure loss in compression connections require a swift, systematic approach. Begin with a visual inspection, then conduct simple tests to pinpoint the issue. Always prioritize safety when working with live systems.
Diagnosing Common Causes
First, inspect the ferrule for uneven marks or gaps. Check for damaged or cross-threaded nuts. Ensure the tubing is cut square and fully inserted. Verify the adapter type matches the system to avoid thread mismatches.
Diagnostic Checks To Follow
- Look closely to confirm the ferrule is seated and the nut is properly engaged.
- Rotate the nut slightly to feel for smooth engagement; roughness may indicate damaged threads.
- Measure the tubing diameter and inspect for roughness, flattening, or ovality that may stop a proper seal.
- Pressure-test the connection at low pressure before returning to service.
Practical Leak Fixes
When a joint seems loose, tighten it again to the recommended specification. Do not over-tighten, because excess force can damage the ferrule.
For swaged, scored, or distorted ferrules, replace them along with the nut and fitting body if necessary. Avoid mixing ferrules and fitting bodies from different manufacturers because mismatched taper, length, or geometry can compromise the seal.
For soft tubing, install an internal insert sized to the tube so the wall is supported and sealing improves. Where corrosion is a concern, stainless steel fittings can extend service life.
Managing PTFE Cold-Flow And Creep
Preventing PTFE cold flow requires specific sealing strategies. Use fittings with internal O-rings, redundant seals, or mechanically backed ferrule designs that resist creep.
Schedule periodic inspections because cold-flow can develop over time even after a correct installation. If PTFE tubing shows deformation, replace it and consider using a secondary or backup sealing method.
| Issue | Fast Check | Recommended Action |
|---|---|---|
| Weeping at nut | Check for loose nut or poor ferrule seating | Retighten to spec; if leak persists, replace ferrule |
| Pressure-related seepage | Oval tubing or poor ferrule seating | Square-cut tube, install tubing insert, replace ferrule |
| Slow seepage over months | Check for soft tube deformation or PTFE creep | Add secondary sealing or change to reinforced tubing |
| Rough thread engagement | Thread engagement is rough or uneven | Install new threaded parts and tighten correctly |
| Corroded fitting components | Look for corrosion marks or surface damage | Use corrosion-resistant fittings and matching ferrules |
Application Tips And Common Use Cases
Compression adapters are useful for various tasks around the home. They commonly adapt supply tubing to faucet, toilet, and fixture inlets. For instance, a sink supply line adapter is required when the sizes of sink posts or faucet inlets differ.
Residential work commonly includes sink supply lines, faucet connections, toilet hookups, and appliance connections. A water heater compression adapter is useful for replacing an old tank or connecting a new valve. Choose parts rated for household water pressure and make sure the ferrule material suits the tubing.
In commercial and industrial settings, the requirements are more stringent. High-pressure compression fittings may be used in industrial piping, bottled gas systems, and HVAC equipment. For these applications, stainless ferrules and two-piece ferrule designs are recommended to withstand creep, corrosion, and vibration.
For instrumentation and high-purity systems, fittings must limit contamination and out-gassing. Choose materials that are compatible with autoclave cycles and clean-room environments. For lab or medical equipment, confirm rated pressure, documentation, and traceability before choosing components.
Mixing parts from different manufacturers can pose risks. Differences in ferrule taper, thread pitch, or ferrule length can prevent proper sealing. It is best to purchase fittings and ferrules from the same vendor or confirm compatibility through Installation Parts Supply or the manufacturer’s data.
When sourcing parts, carefully check product pages for exact outer diameter, thread pitch, and material. This step reduces surprises and reduces the need for field rework. Correct part selection is important for preventing leaks and extending service life in residential and commercial systems.
Final Thoughts
Compression adapters are important for joining and converting tubing, provided you select the right one and install it properly. Knowing the main parts—nut, ferrule, and body—makes selection and installation more reliable. That understanding helps you match size, gender, and thread type, including parts such as a 3/8 to 1/2 converter or 1/2 female to 3/8 male adapter.
The material of the adapter is also critical. Brass and stainless steel are well suited for high-pressure and harsh chemical environments. Copper, on the other hand, is suitable for many residential applications.
Adhere to the best installation practices. Make square cuts and smooth the tubing ends. Use inserts for soft PEX or nylon tubing. Tighten according to the recommended turn count and avoid crushing the ferrule.
For troubleshooting, check ferrule seating and thread integrity. Replace swaged ferrules after disassembly. Consider using redundant seals or alternative materials to prevent PTFE cold-flow.
